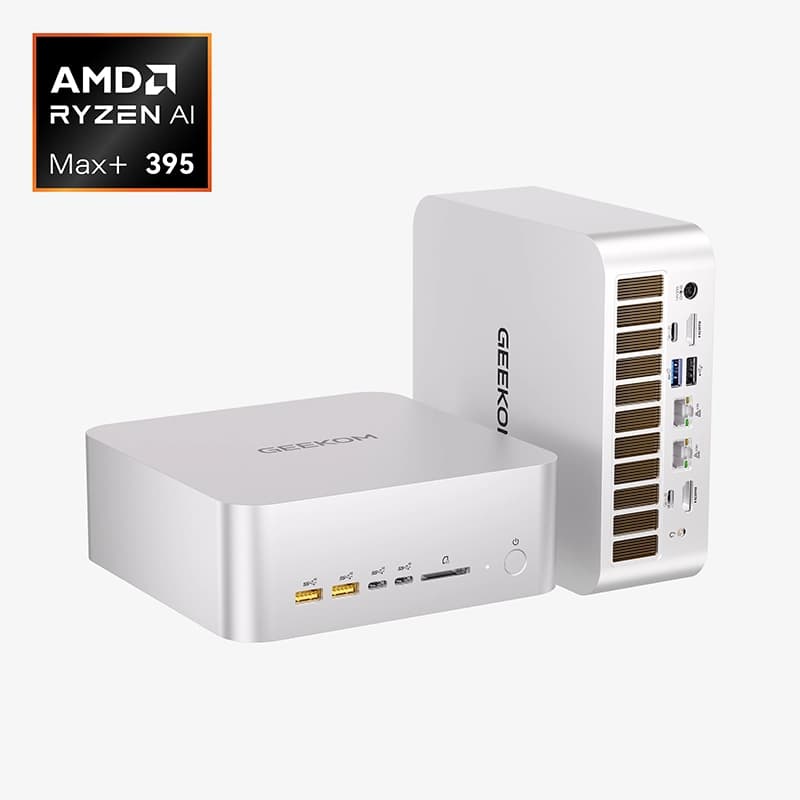

GEEKOM A9 Mega AI Mini PC with AMD Ryzen™ Al Max+ 395
The Ultimate AI Workstation | 120W Sustained | 126 Total TOPS
- Next-Gen AI Powerhouse (126 Total TOPS): Unleash elite-level machine learning and creative workflows with 50+ NPU TOPS and a total system output of 126 TOPS, driven by the flagship AMD Ryzen™ AI Max+ 395 (16C/32T) for unthrottled workstation performance.
- IceBlast 5.0 Thermal Mastery: Stay frost-bound with a precision-engineered dual-fan system and an ultra-slim, full-coverage vapor chamber, specifically designed to maintain a sustained 120W TDP without throttling—even under 100% load.
- Massive 330W Power Reserve: Equipped with a professional-grade 330W power supply, providing the massive electrical overhead required for rock-solid stability and simultaneous CPU, GPU, and NPU peak-frequency bursts.
- Ultra-Fast 128GB LPDDR5x & RAID Storage: Experience zero-bottleneck multitasking with up to 128GB of 8000MHz memory and dual M.2 PCIe Gen4x4 slots(up to 8TB) supporting RAID 0/1 for industrial-grade data transfer speeds.
- Quad-8K Professional Workspace: A world-first in its class—drive four 8K displays simultaneously via dual 40Gbps USB4 and dual HDMI 2.1 (FRL) ports for the ultimate high-resolution creative or trading setup.
- Industrial Build & Pro-Connectivity: A precision CNC-machined aluminium alloy chassis housing Wi-Fi 7, Bluetooth 5.4, dual 2.5G Ethernet, and integrated fingerprint security—combining rugged durability with elite networking.
Type: 128 GB RAM + 2 TB SSD
28 in stock
$3,999.00
$4,399.00
GEEKOM A9 Mega
The Most Powerful Mini PC on Earth
Why choose GEEKOM A9 MEGA ?
Spend Smart, Go Powerful Mini PC.
In the world of mini PCs, many models may looksimilar on the outside, but their prices can differdrastically. Why are some just $100-$300, whileothers cost $500-$700, or even over $900? Theanswer is simple: High-performance.
Spend Smart, Go Powerful Mini PC.
In the world of mini PCs, many models may looksimilar on the outside, but their prices can differdrastically. Why are some just $100-$300, whileothers cost $500-$700, or even over $900? Theanswer is simple: High-performance.
126 TOPS
AI Performance
Radeon™ 8060S Graphics
Wi-Fi 7
Bluetooth 5.4
Supports 4 Displays & Up To 8K
AMD Ryzen™ AI Max+ 395 (16C/32T)
SD Card reader
Dual USB4
Dual HDMI 2.1
Dual 2.5GbE LAN
Windows 11 Pro
+ Linux Ready
Up to 128GB LPDDR5X
8000MHz Memory
Dual M.2 PCIe 4.0 SSD
(Up to 8TB)
Fingerprint button
IceBlast 5.0
Cooling System
High quality

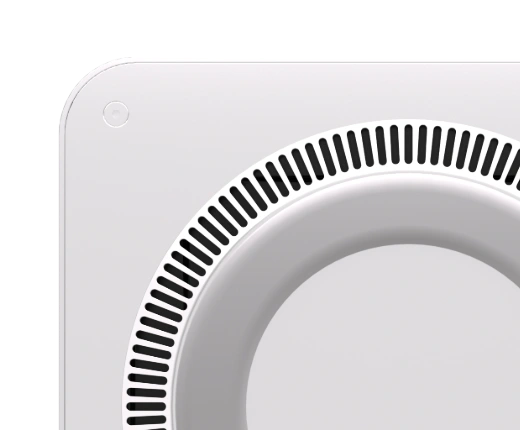

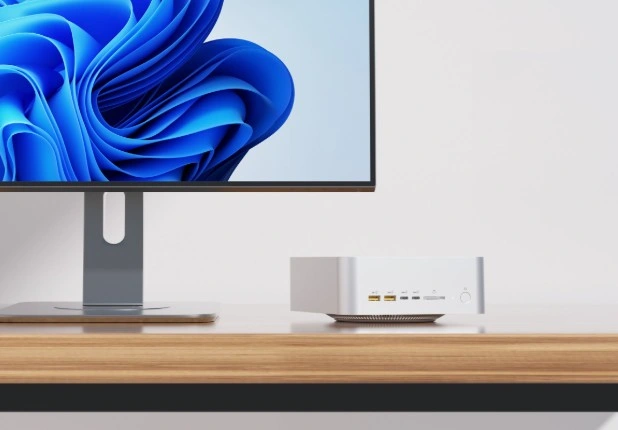

Crafted from aerospace-grade aluminum alloy with CNC-machined chamfered edges and a sleek sandblasted finish, the A9 Mega measures just 171×171×70.9mm.

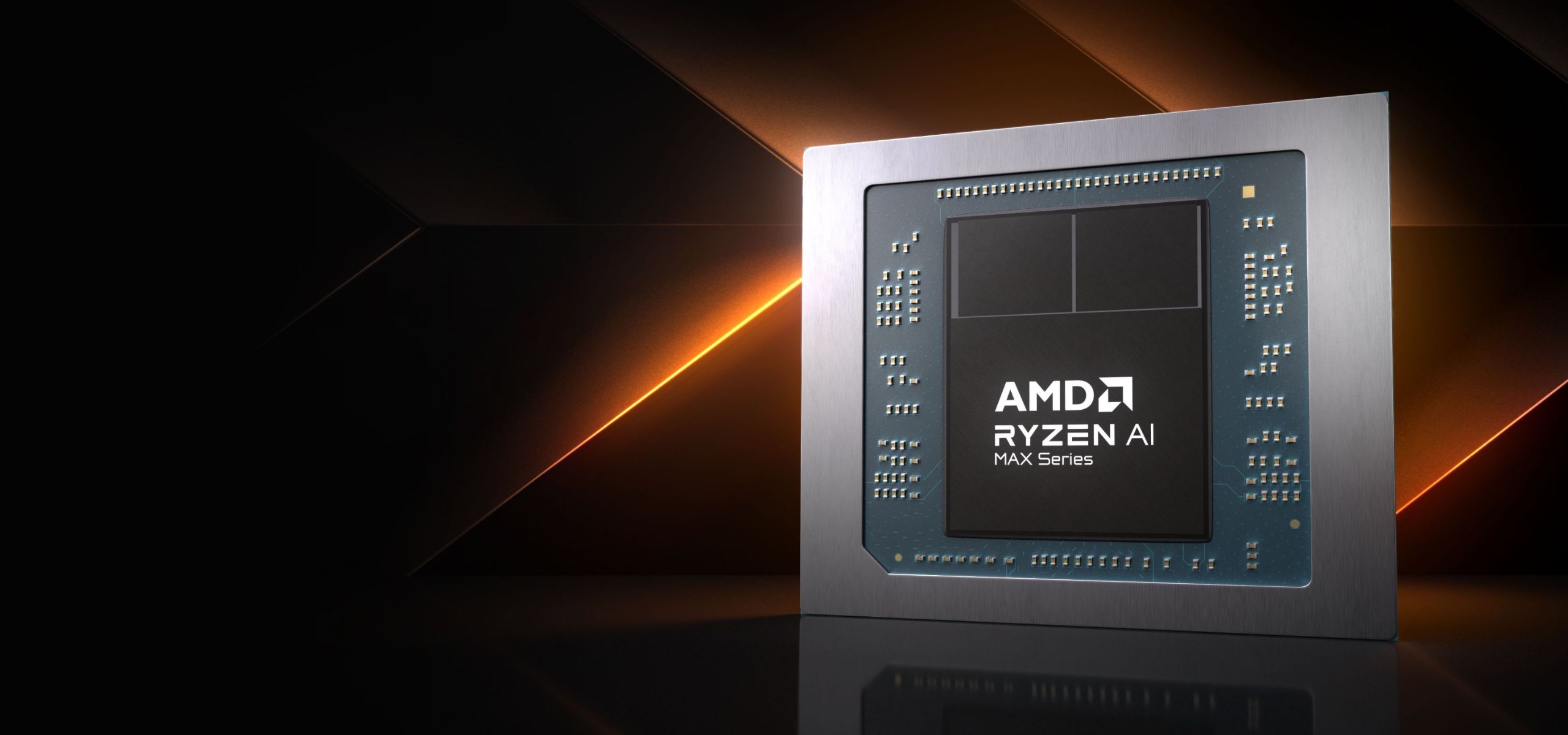

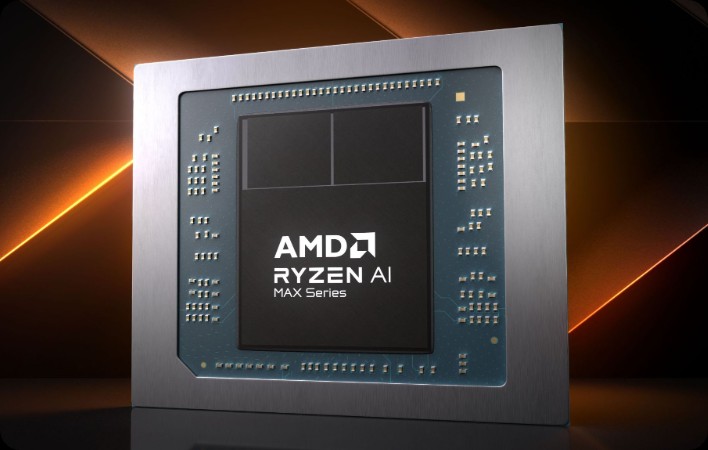

AMD Ryzen™ AI Max+ 395 Processor
At the heart of A9 Mega is the AMD Ryzen™ AI Max+ 395 processor, engineered to deliver strong multi-core performance and high responsiveness for demanding desktop-class workloads, from content creation to complex multitasking.
16Cores
32Threads
64 MBL3 Cache
Up to 5.1GHzMax. Boost Clock
TSMC 4nm FinFETProcessor Technology
Extreme AI & Compute Power – Ready for the AI Era
AMD Ryzen™ AI Max+ 395｜XDNA 2 NPU
｜
126 TOPS｜Cloud-Free AI
50+ TOPS from NPU + total 126 TOPS with CPU & GPU
Supports local deployment of
Qwen, LLaMA, Stable Diffusion, DeepSeek R1 70B
2.2× faster inference on LM Studio than RTX 4090 at just 13% power
A9 Mega
2.2×
RTX 4090
Discrete-Class Graphics – Radeon™ 8060S
RDNA 3.5｜40 Compute Units
Ray Tracing ｜4K Editing
Handles 4K video editing, 3D rendering, and AAA games Comparable to RTX 4070 Laptop GPU in select scenarios
Seamlessly runs Cyberpunk 2077, GTAV, Elden Ring with ray tracing

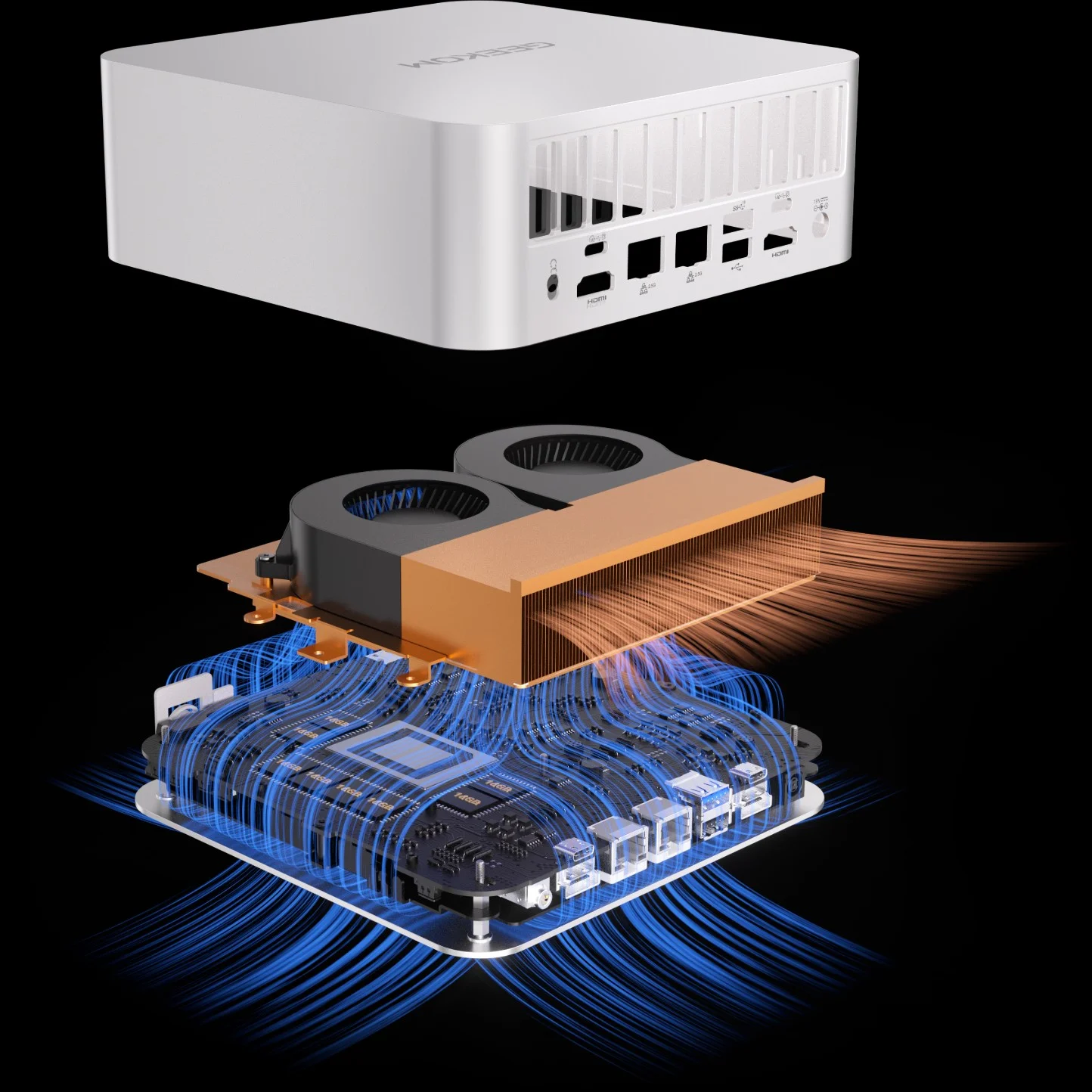

120W TDP Performance + IceBlast 5.0 Cooling
Sustained 120W ｜ Twin Precision Fans ｜ Full-Coverage Vapor Chamber｜Smart Thermal Control
Unthrottled 120W Endurance: Experience seamless multitasking with zero performance drops, even under the heaviest workloads.
Triple-Engine Synergy: CPU, GPU, and NPU synchronized to run at peak frequencies simultaneously for total system dominance.
Precision Thermal Architecture: A dual-fan, full-coverage vapor chamber system that balances arctic-grade cooling with whisper-quiet acoustics.
Up to 128GB RAM & 8TB SSD – Handle Anything
LPDDR5X 8000MHz｜PCIe Gen 4×4｜Dual M.2 2280
128GB
128GB memory eliminates bottlenecks in video editing, AI, and multitasking
8TB
Up to 8TB ultra-fast SSD for large projects, datasets, and LLMs

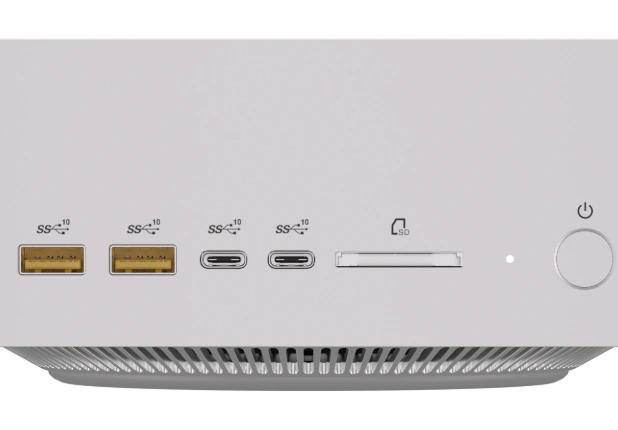

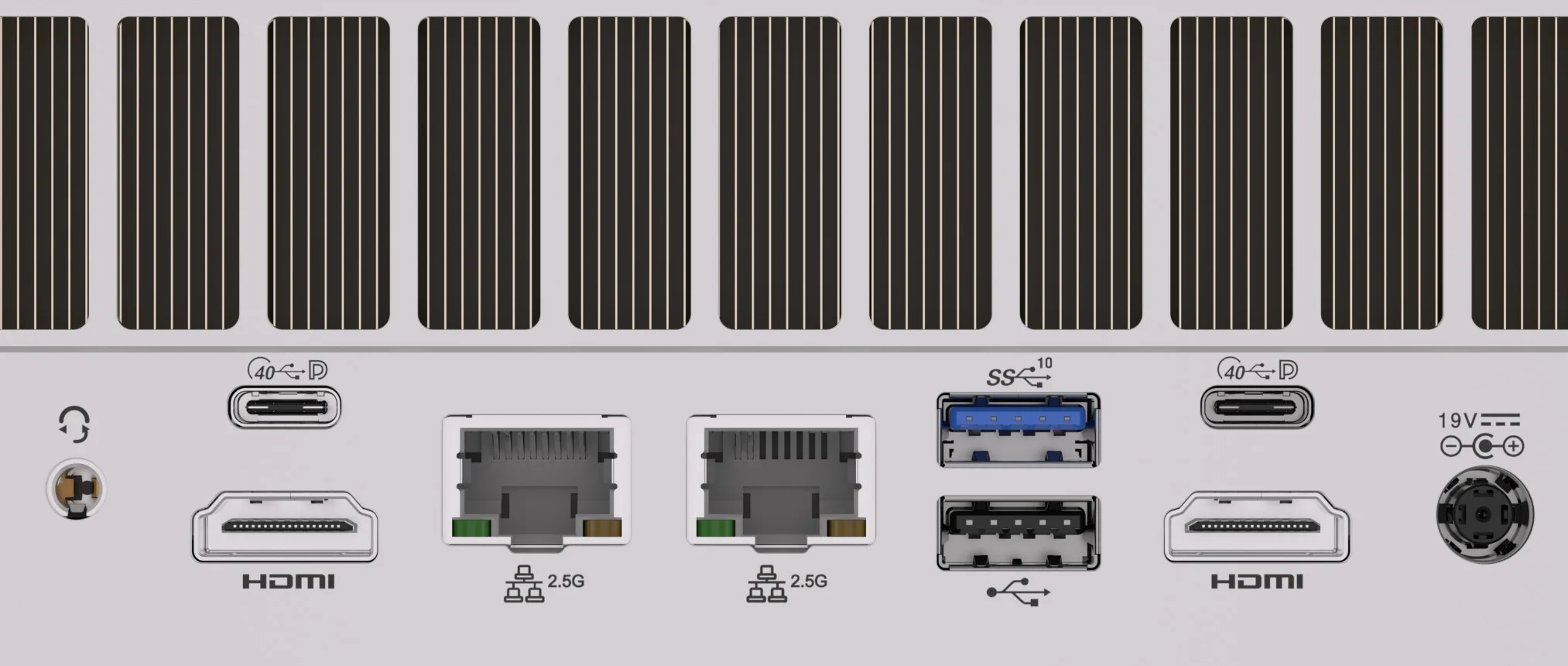

Comprehensive I/O
All the Connections You’ll Ever Need
2 x USB 3.2 Gen 2 Type-C
(Data Only)
1 x Power button
(Fingerprint）
2 x USB 3.2 Gen 2 Type-A

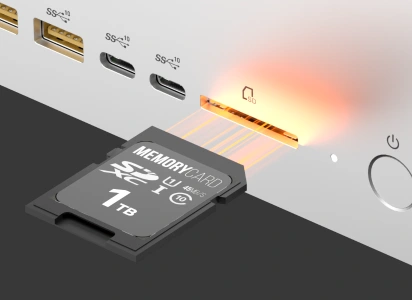

1 x SD Card Slot
2 x USB 4 Type-C (40Gbps), with Display Port 2.1
2 x Rear 2.5G
RJ45 Ethernent
1 x USB 2.0
1 x 3.5mm
stereo headset
jack
2 x HDMI 2.1 FRL
1 x USB 3.2 Gen 2 Type-A
1 x DC in

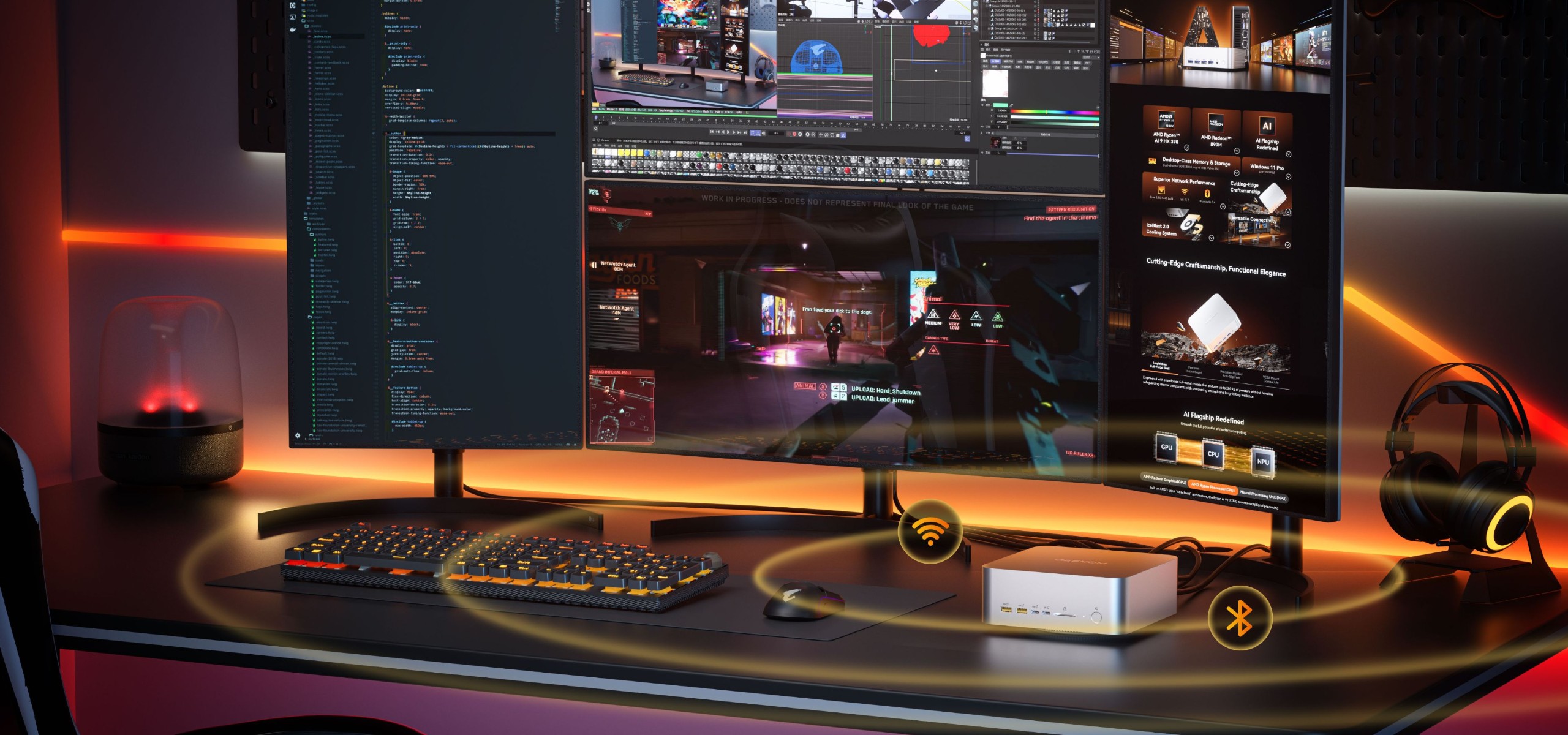

Unleash Productivity with Quad Display
2× USB4(40 Gbps)｜2× HDMI 2.1｜2× 2.5GbE｜Wi-Fi 7｜Bluetooth 5.4
Connect to NAS
Peripherals and SD cards without dongles
Fingerprint login to protects your data security
Smart Connectivity, On-Demand Flexibility
4K/8K Adobe, Blender, DaVinci workflows
Handles meetings, complex documents, and daily workloads.
2K/1080p ray tracing performance
Local LLMs, Whisper, diffusion models
Engineered for Extreme Durability
Every GEEKOM unit undergoes rigorous validation across 339 tests, spanning environmental, mechanical, material, and lifespan assessments, ensuring unmatched stability and long-term reliability.
Thermal Endurance:
Verified continuous operation from -20°C to 55°C over 120 Hours
System Stability:
Proven stability under continuous load for 330 Hours
Structural Integrity:
Withstands 90 Minutes of vibration stress for transport and daily operation
Electromagnetic Compliance:
Emission testing across 30MHz–1GHz to safeguard nearby electronics
Port Durability:
USB interfaces validated for 15,000 connection cycles
Multi-OS & Developer Ready
A Flexible Platform for Builders
Pre-installed with Windows 11 Pro and fully compatible with leading Linux distributions like Ubuntu and Debian, the A9 Mega is a versatile platform for developers, researchers, system integrators, and technical teams. Perfect for coding, virtualization, automation, and containerized workflows.
Professional Support. Secured for 3 Years.
1 Year Free Replacement
2 Years Free Maintenance
3 Years Quality Support
Global 24 hours
Pre-sales technical supportand after-sales service team
lf you have any questions, please contact us through "Account Service", "Order History" "Contact Seller", we will reply you within 24 hours!
Trusted by Leading Media Worldwide
Award-Winning Excellence Across Our Product Line
Certified for Quality, Safety & Performance
Specifications
- Materials
- Aluminium alloy
- Color
- Silver
- Dimensions
- 6.73" × 6.73" × 2.79"（Including floor MATS）
- Weight
- 1.9KG(Includes adapter）
- power dissipation
- up to 140W
- CPU
- AMD Ryzen™ AI Max+ 395,16C/32T, 3GHz, Max 5.1GHz, cTDP 45-120W
- GPU
- Radeon 8060S Graphics (for Max+ 395), Support 4 outputs, AMD Ryzen™ AI, NPU 50 TOPS
- Power consumption
- TDP 45-120W
- Memory
- Support 8*Onboard LPDDR5x 8000MHz, up to 128GB
- Storage
- 2 x M.2 2280 PCIe Gen4x4, supports 128GB~4TB NVMe SSD, support Raid 0 & Raid 1
- Network (LAN)
- 2x RJ-45 Ethernet 10/100/1000/2500 Mbps ，LED (10/100Mbps:No light, 1000 Mbps: Orange Flashing. 2500 Mbps: Green)
- Displays
- 2 x HDMI 2.1 (FRL) up to 8K/60Hz
- WIFI
- Wi-Fi 7 802.11be, 2.4GHz/5GHz, 6GHZ
- Microphone
- 2 x Microphone
- LED
- 1 x white LED indicator
- Fingerprint button
- 1 x Fingerprint button, USB interface，Support ESS
- I/O
- 2 x Front USB 3.2 Gen 2 Type-A, 10Gbps (Yellow) 2 x Front USB 3.2 Gen 2 Type-C (Data only) 1 x Rear USB 3.2 Gen 2 Type-A (Blue Tongue) 1 x Rear USB 2.0 2 x Rear USB 4 Type-C (40Gbps), with Display Port 2.1 2 x Rear HDMI 2.1 FRL, up to 8K/60Hz 2 x Rear 2.5G RJ45 Ethernent 1 x Front SD Card SDXC 1 x Rear 3.5mm stereo headset jack 1 x DC in 20V
- Internal Connector
- 2 x M.2 2280 Key-M slot NVMe PCIe Gen 4x 4 SSD, support Raid o & Raid 1 1 x M.2 2230 Key-E PCIe 3.0 x1 for WiFi 2 x Fan header (4 pin) 1 x CMOS Reset (2 pin) 1 x 6 pin header for Fingerprint 2 x 2 pin Speaker Header (HW design reserved) 1 x D-Mic Header (HW design reserved) 1 x Pump (2 pin, 12V)(HW design reserved) 1 x RGB connector(3 pin, 5V) (HW design reserved/Option) 1 x 2 pin header for Copilot (HW design reserved/Option)
- Watchdog Timer
- 255 timer levels; setup by software
- Battery
- RTC coin battery, (1 x 2032)
- Security
- 1 x DTPM2.0
- OS Support
- Windows 10 LTSC, Windows 11, Linux
- Operating Temperature
- -0 ~ 50 °C
- Storage Temperature
- -20 ~ 70 °C
- Relative Humidity
- 95% @ 40 °C (Non-Condensing)
- Cooling method
- Dual fans + VC heat dissipation
- Certification
- CE, FCC, CB, CCC, SRRC, RoHS
- Input power
- AC 100-240V ---50-60HZ 4.2A，TBD
- Output power
- 20V 16.5A power supply adapter 330W with geo-specific AC cord (IEC C5),
