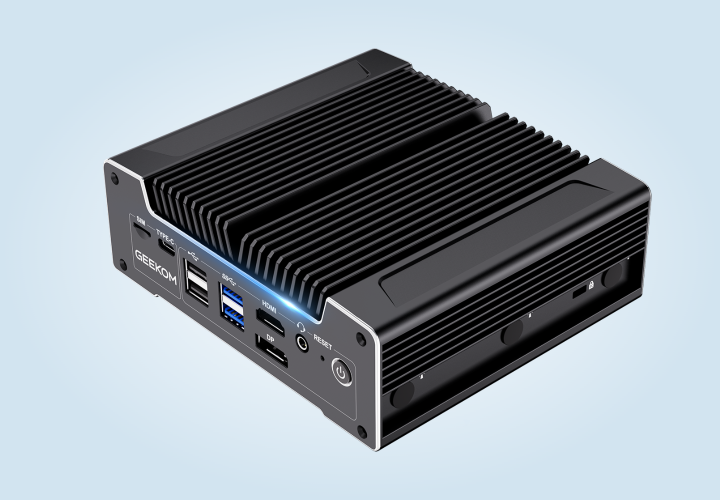

GEEKOM iX12 Fanless Mini PC with Intel® Processor N95
$594.00$699.00
- Industrial Performance & Virtualization Ready: Powered by the Intel® Processor N95 (15W TDP) with hardware-accelerated AES-NI and VT-x/VT-d. Minimizes hypervisor overhead to deliver near-native, line-rate packet forwarding and secure VM management in Proxmox VE, XCP-ng, or pfSense.
- Quad Intel® 2.5G LAN & 4G/5G Gateway: Engineered with 4 × Intel® I226-V 2.5G Ethernet ports for premium stability, strict network isolation, and advanced firewall deployment. Features a built-in 4FF SIM card slot and 6 antenna holes for automatic cellular failover, guaranteeing 24/7 uninterrupted uptime.
- 100% Fanless Cooling & Rugged Build: Heavy-duty anodized aluminum top-fin chassis provides absolutely silent, dustproof passive cooling with zero moving parts. EMC/ESD compliant and backed by 339 rigorous tests for flawless continuous operation in harsh environments (14°F to 122°F).
- DDR5 RAM & Versatile Triple Storage: Supports up to 32GB DDR5 4800MHz memory for massive system bandwidth. Features a cost-effective, low-power triple-storage layout: 1 × M.2 2280 SATA SSD slot (up to 2TB), 1 × 2.5″ SATA SSD bay (up to 512GB), and a secure 64GB onboard eMMC.
- Pro Industrial I/O & 3-Year Warranty: Features a dedicated front USB-C Console/UART port for direct IT debugging, a secure threaded locking DC-in jack, TPM 2.0, and triple-display outputs (up to 8K). Ships with Windows 11 Pro pre-installed, VESA mount ready, and backed by an industry-leading 3-Year Warranty.
Loading…
Type: N95 8 GB RAM + 256 GB SSD
$594.00
$699.00
📦 US Inventory: Free 3–7 Day Shipping
✅ 339 Quality Tests: 5+ Years of Reliability
🛡️ Industry-Leading 3-Year US Warranty
💰 30-Day Money-Back Guarantee
340 people are viewing this right now
GEEKOM iX12
Fanless Mini PC
Always Online丨Always Secure丨Always Industrial
From Enterprise Edge to Homelab:
Seamless Deployment Across Industries
From enterprise security to home entertainment – the GEEKOM iX12 handles it all with ease.
Built for efficiency across industries.
SD-WAN
Firewall
VPN
Factory
Automation
VM
Management
Network Audit

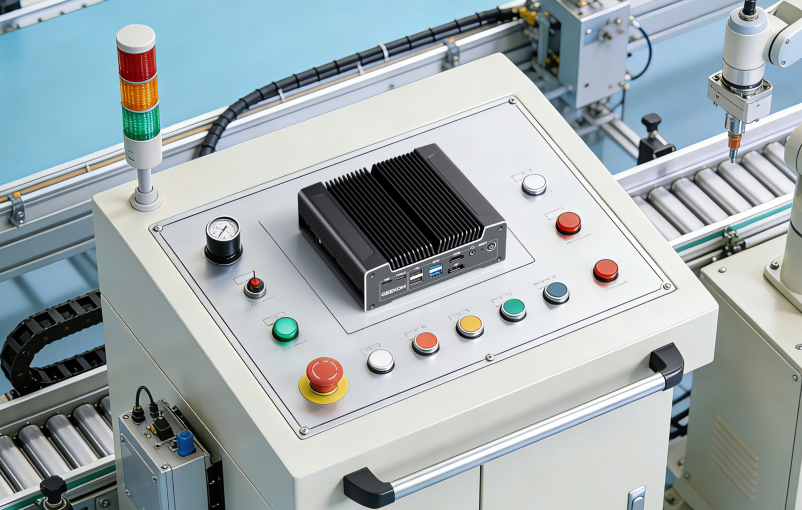

Industrial & Mission-Critical –
Uncompromising Stability
Built for demanding factory floors and corporate server rooms. AES-NI encryption and VT-x/VT-d virtualization deliver 24/7 reliability.
Soft Routing
Digital Advertising Signage
IoT Gateway

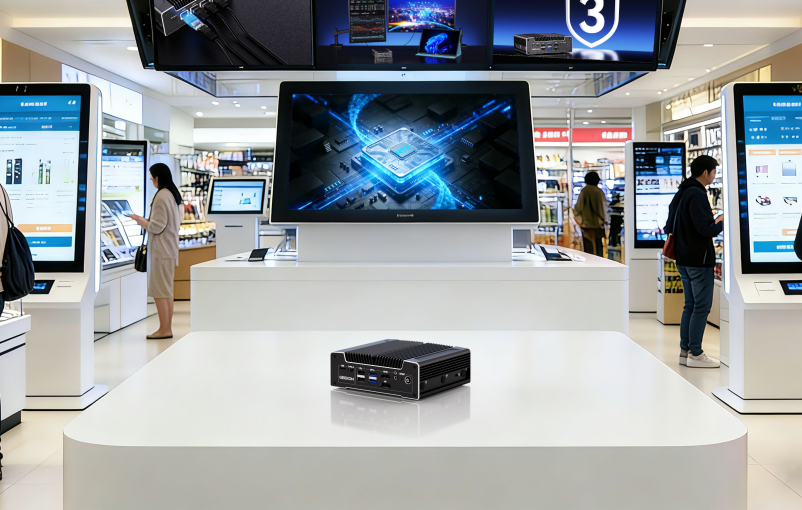

Business & Digital Signage –
Reliable & Silent
Always-on performance for retail networks and public displays. Compact, silent, and maintenance-free.
Home Server
Home Router
Home Office
Home Entertainment
Homelab & Power Users –
Enterprise Features, Smart Value
Enterprise-grade capabilities without the complexity. Perfect for everyday home users.

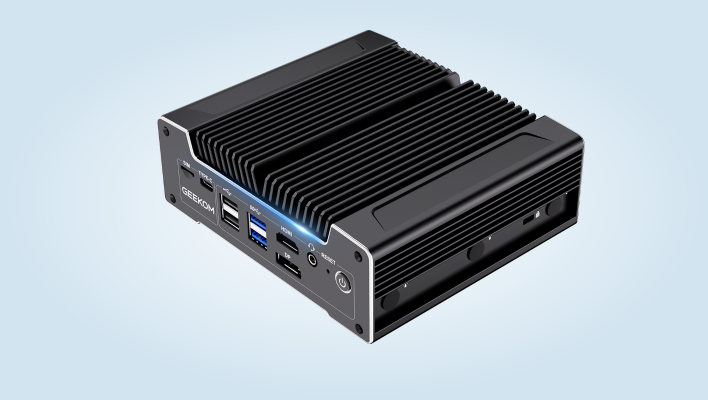

Industrial-Grade Design
& Protection
Sturdy Aluminum Alloy Build
All-metal frame with a fine sandblasted finish. Stamped, extruded, and anodized for durability, scratch resistance, corrosion resistance, and a premium matte look.
VESA Mount Ready
All-metal frame with a fine sandblasted finish. Stamped, extruded, and anodized for durability, scratch resistance, corrosion resistance, and a premium matte look.
Sturdy Aluminum Alloy Build
All-metal frame with a fine sandblasted finish. Stamped, extruded, and anodized for durability, scratch resistance, corrosion resistance, and a premium matte look.
Sturdy Aluminum Alloy Build
All-metal frame with a fine sandblasted finish. Stamped, extruded, and anodized for durability, scratch resistance, corrosion resistance, and a premium matte look.
Sturdy Aluminum Alloy Build
All-metal frame with a fine sandblasted finish. Stamped, extruded, and anodized for durability, scratch resistance, corrosion resistance, and a premium matte look.
Sturdy Aluminum Alloy Build
All-metal frame with a fine sandblasted finish. Stamped, extruded, and anodized for durability, scratch resistance, corrosion resistance, and a premium matte look.

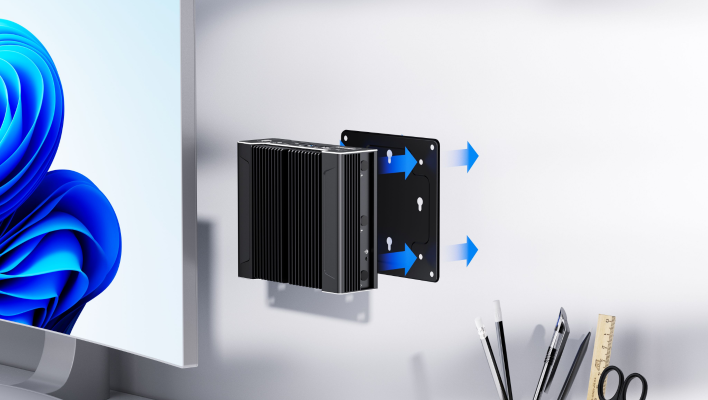

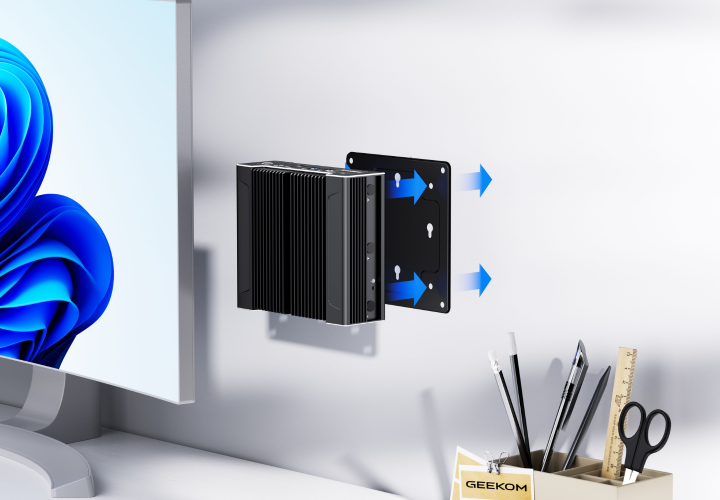

VESA Mount Ready
Mount behind any compatible monitor for a space-saving, clutter-free setup.

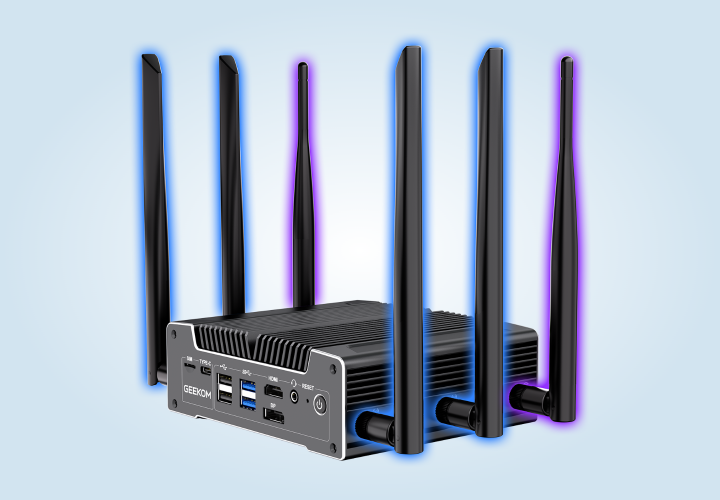

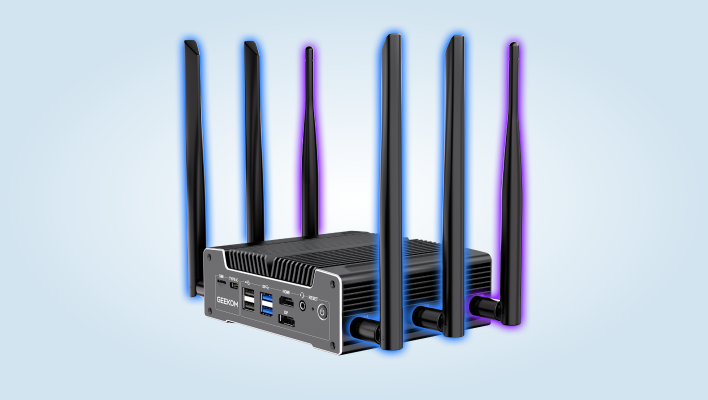

6 Antenna Ports
2 for WiFi, 4 for 4G/5G. Supports WiFi + cellular networks for robust connectivity and uninterrupted network coverage across any environment.

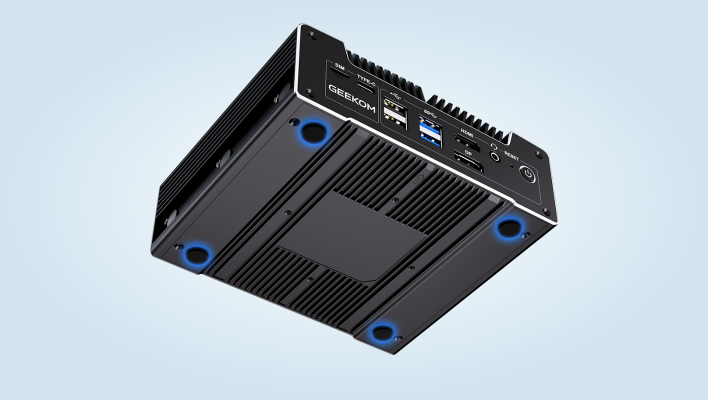

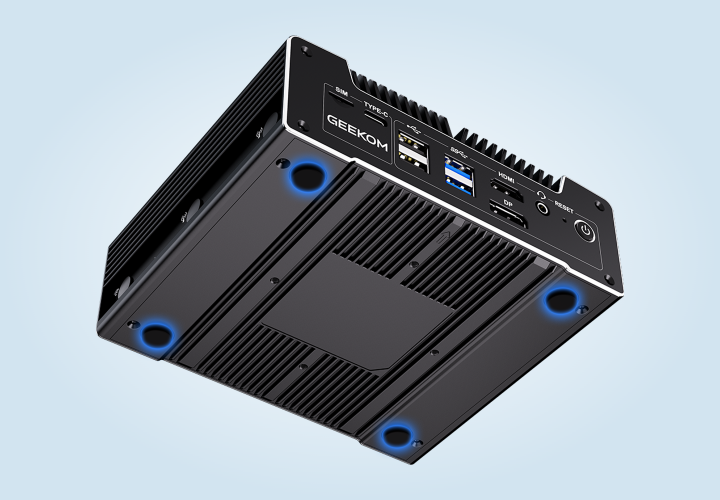

High-Traction Industrial Footpads
Precision-engineered to prevent slippage and stabilize the chassis on any surface.

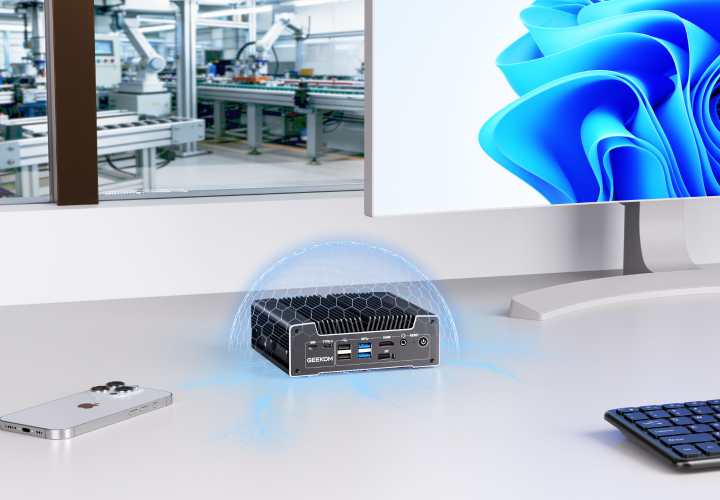

EMC & ESD Compliance
EMC Certified – No interference with nearby devices, stable performance under electromagnetic disturbance. ESD Protected – Continues working reliably even with electrostatic discharge exposure.
Next-Gen Performance. Hardware-Accelerated Security. Lightning Virtualization
Intel® Processor N95
4 Cores
4 Threads
15W TDP
6 MB Intel® Smart Cache
3.40 GHz Max Turbo Frequency
Next-Gen Intel® N95 Processor & UHD Graphics
Built on the latest Intel® N-series architecture for higher efficiency and responsive performance, with deep support for Intel® AES-NI hardware encryption and Intel® VT-x / VT-d virtualization.
AES-NI Hardware Encryption
Transforms software-layer encryption into instant in-hardware processing, dramatically reducing CPU overhead while sustaining high-speed network throughput across VPN tunnels, 24/7 firewall inspection, and mass data encryption.
VT-x / VT-d Virtualization
Minimizes software middleware overhead, allowing VMs to directly take over physical NICs – reducing latency and jitter in VMware or Proxmox environments for lightning-fast packet forwarding.

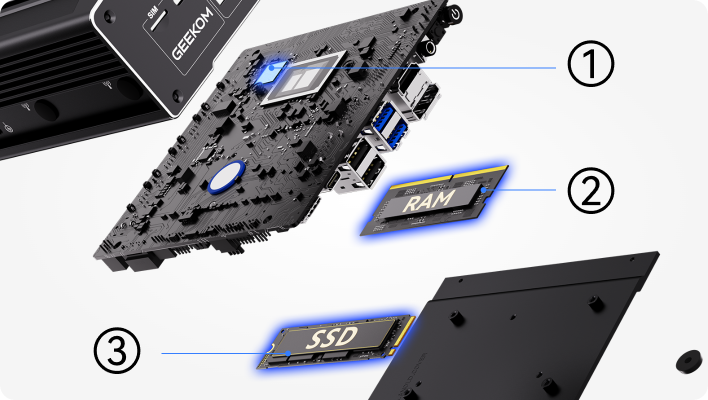

High-Speed DDR5 &
Versatile Triple-Storage Architecture
Pair next-gen 4800 MHz DDR5 memory for maximum system responsiveness with a highly flexible storage layout. Featuring a dedicated M.2 2280 SATA SSD slot, an internal 2.5" SATA III bay, and secure onboard eMMC, this triple-storage design delivers reliable read/write performance and extensive capacity scaling—all while minimizing thermal output and reducing bulk deployment costs.
① 64 GB onboard eMMC
② SO-DIMM DDR5 4800 MHz, supports up to 32 GB
③ M.2 2280 M-Key for SATA SSD,
supports up to 2 TB

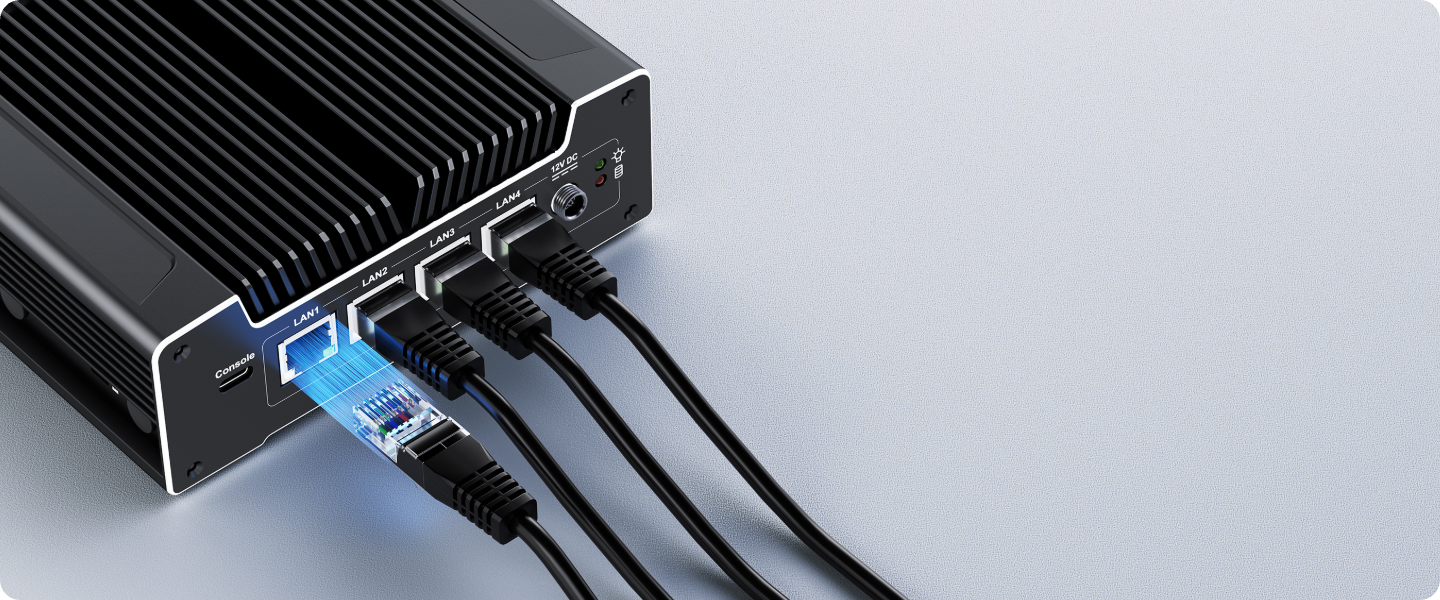

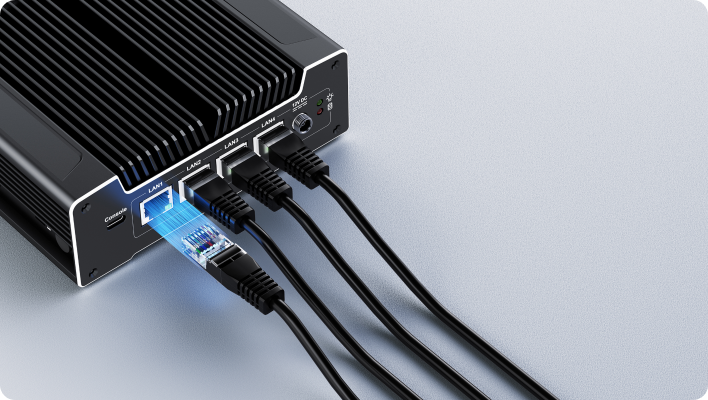

Always Online.
Always Connected
Equipped with 4 x 2.5G Ethernet ports for easy network isolation and auto-failover to 4G/5G via an external SIM card slot when broadband drops – ensuring 24/7 stable uptime and continuous data transmission even if the physical line fails.
Equipped with 4 × 2.5G Ethernet ports for easy network isolation and auto-failover to 4G/5G via an external SIM card slot when broadband drops – ensuring 24/7 stable uptime and continuous data transmission even if the physical line fails.
24/7 CONNECTIVITY
Unmatched I/O Expansion:
Connect Your Entire Infrastructure
GEEKOM iX12 features Type-C serial debug for direct console access and 4 high-speed USB ports – unlocking endless customization. Rich I/O design, ready for any industrial scenario.
6 × Antenna Ports 2 for WiFi, 4 for 4G/5G
USB-C 3.2
Gen 2
2 × USB-A
2.0
HDMI 1.4
For WiFi
For 4G/5G
SIM Card
Slot
2 × USB-A 3.2
Gen 1
DP 1.4
3.5 mm
headphone jack
Power button
6 × Antenna Ports 2 for WiFi, 4 for 4G/5G
1 × COM (USB-C / Console – UART)
For WiFi
Kensington
Lock
For 4G/5G
4 × 2.5G Ethernet (RJ-45)
DC Jack
(Threaded
Connector)
Inside and Out –
Protecting Your Digital Assets
TPM 2.0 + Kensington Lock
Data & Hardware Protection
TPM 2.0 Hardware Encryption
Secure key storage, integrity verification, and hardware-level data protection. Essential for Windows 11.
Kensington Lock Slot
Physical anti-theft protection to keep your Mini PC securely in place.

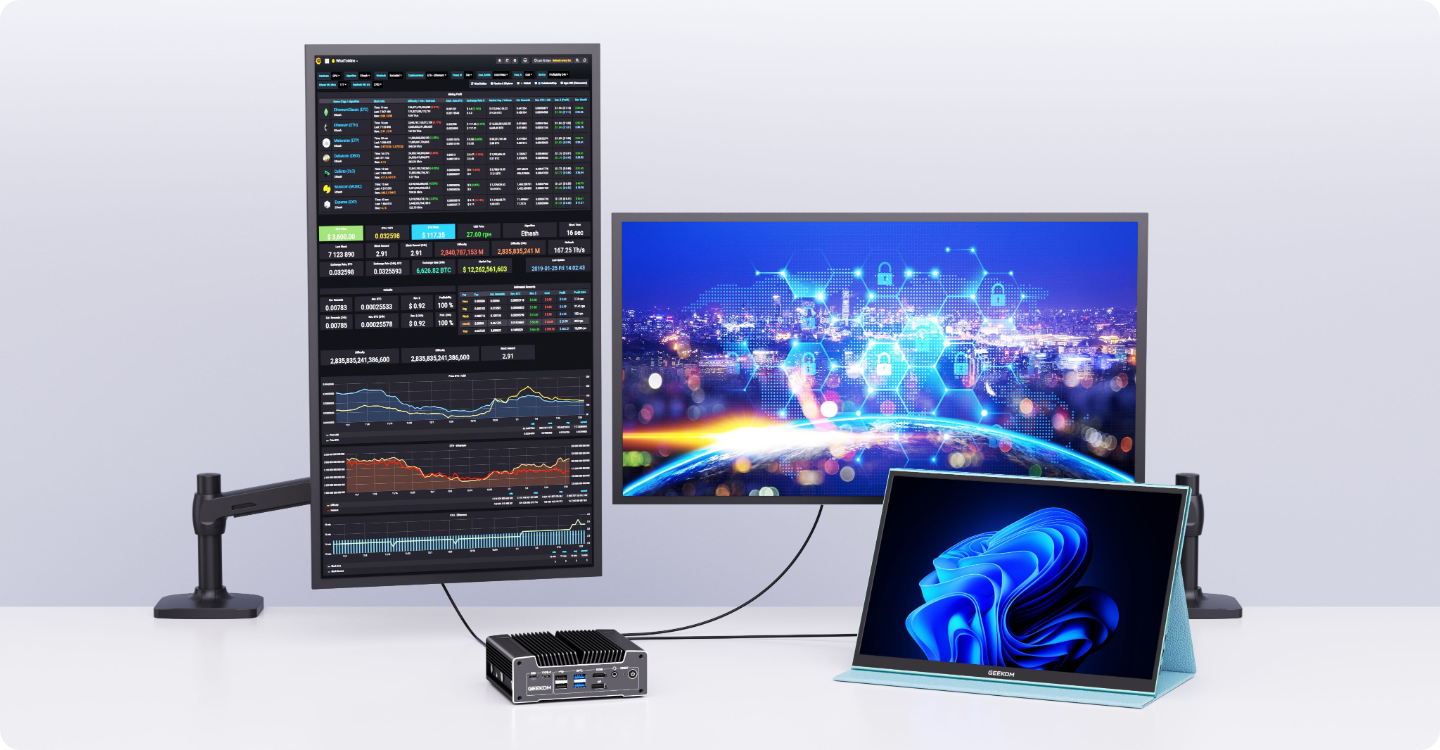

Triple 4K Output.
8K Ready
GEEKOM iX12 drives three 4K displays simultaneously via HDMI + DP + USB-C, with support for up to 8K. Perfect for multi-window workflows, surveillance, digital signage, and more.
HDMI 1.4 (4K@60Hz)
DP 1.4 (8K@60Hz)
USB-C 3.2 Gen 2 (4K@60Hz)

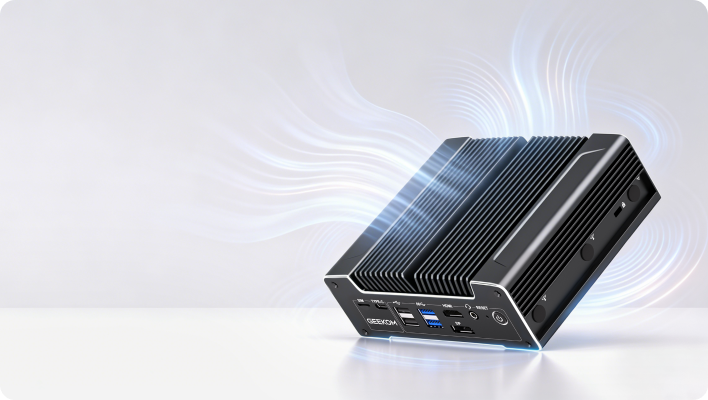

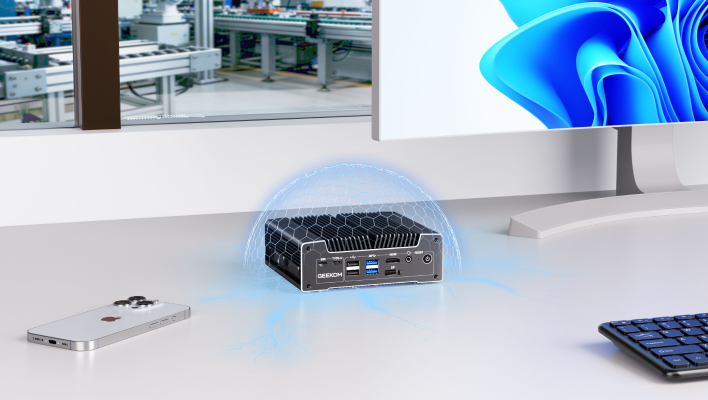

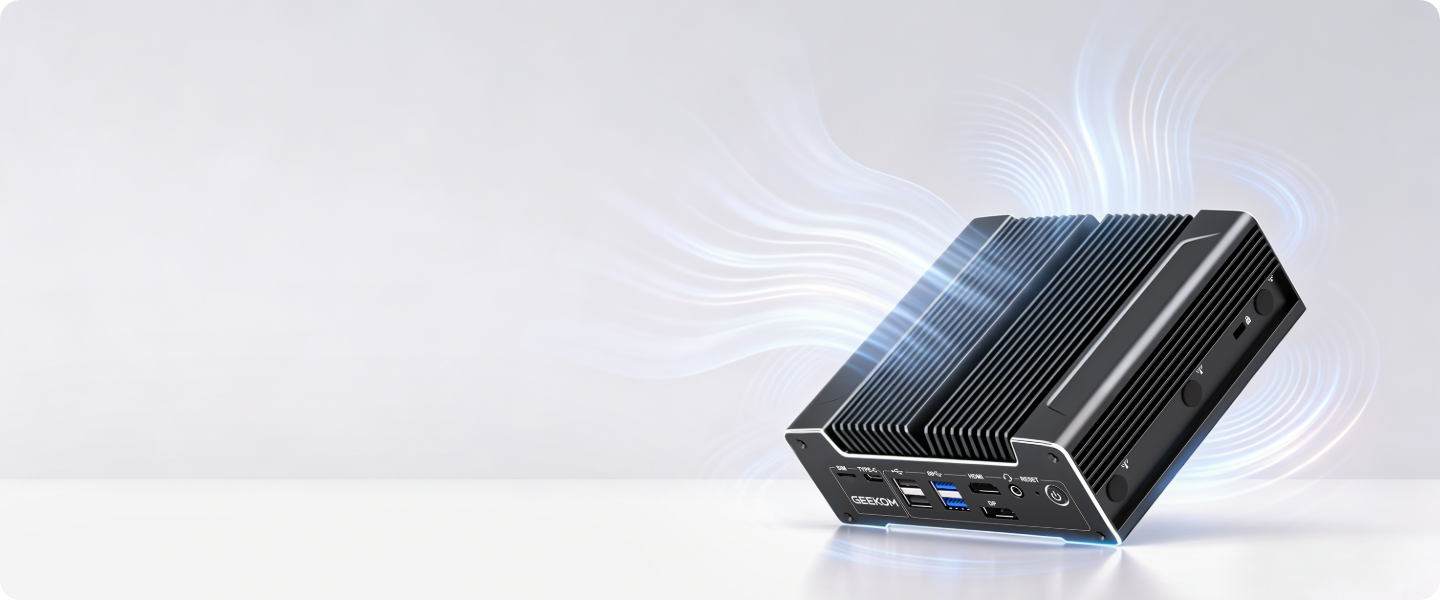

Fanless Cooling.
Industrial Grade
Fanless & Silent
No moving parts, zero noise, and no dust ingress for extended lifespan.
Kensington Lock Slot
Physical anti-theft protection to keep your Mini PC securely in place.
Silent Cooling
Fanless
Dustproof
Engineered for Harsh Environments
The GEEKOM iX12 is designed to thrive in demanding conditions, backed by 339 rigorous tests covering environmental, mechanical, material, and lifespan evaluations. Reliable power for the toughest industrial applications.
120 Hours Extreme Temperature Testing
Flawless operation from 14°F to 122°F (-10°C to 50°C),
built to withstand extreme environmental shifts.
90 Minutes Vibration Testing
Military-grade durability for transport & daily use
15,000 USB Plug Cycles
Ports built to last 10+ years of daily connections
330 Hours System Stability Testing
Zero crashes even under heavy workloads
EMI Radiation Testing (30MHz-1GHz)
No interference with sensitive electronics
Full System Compatibility.
Zero Deployment Barriers
GEEKOM iX12 comes pre-installed with Windows 11 Pro – ready to use out of the box. Also supports Linux, Ubuntu, and other OS for flexible deployment.
Seamlessly integrates with firewalls (OPNsense/pfSense), virtualization (Proxmox/XCP-ng), and IoT platforms (OpenHAB/Home Assistant) – a complete ecosystem for security and automation.
3-Year Warranty – Peace of Mind
Every GEEKOM iX12 includes a 3-year warranty – triple the industry standard. Backed by our confidence in quality and craftsmanship. 24/7 support always ready.
Trusted by Leading Media Worldwide
Award-Winning Excellence Across Our Product Line
Certified for Quality, Safety & Performance
Specifications
- Form Factor
- Dimensions: 5.20" × 5.71" × 2.07" (132.1 × 145 × 52.5 mm) Weight: around 2.1 lbs (0.95 kg) Chassis: Aluminum alloy extrusion/stamping (Sandblasted 150# zirconium sand, anodized) Cooling: Fanless design (Up to 15W thermal performance)
- CPU
- Intel® Processor N95 (4 Cores / 4 Threads, up to 3.4GHz, TDP 15W)
- Graphics
- Intel® UHD Graphics
- Memory
- 1 × SO-DIMM DDR5-4800, up to 32 GB
- Storage
- 1 × M.2 2280 M-Key for SATA SSD 1 × Onboard eMMC (16GB / 32GB / 64GB, Optional) 1 × Internal 2.5” SATA 3.0 SSD (Optional)
- External I/O Ports
- 1 × HDMI 1.4 (4K @ 60Hz) 1 × DP 1.4 (8K @ 60Hz) 4 × RJ-45 2.5G Ethernet ports 2 × USB 3.2 Gen 1 (Type-A) 2 × USB 2.0 (Type-A) 1 × USB 3.2 Gen 2 (Type-C, supports DP 1.4, no PD) 1 × Type-C Console (UART exposed, default: 115200 baud) 1 × 4FF SIM Card Holder 1 × 3.5mm Audio Jack (Headphone/Mic combo) 1 × DC-In Jack (12V, 5.5*2.5mm, threaded locking connector) 6 × Antenna Mounting Holes (2 × WiFi, 4 × Reserved for 4G/5G)
- Internal Headers
- 1 × M.2 2230 E-Key (PCIe 3.0 x1 for WiFi) 1 × M.2 3042/3052 B-Key (USB 3.2 Gen 1 for 4G/5G Modem) 1 × SATA 3.0 port & 1 × SATA Power Header (4-pin) 1 × USB 2.0 Header (4-pin) 1 × eSPI Header (12-pin) 1 × CMOS Reset Header (3-pin) 1 × CPU Fan Header (4-pin) 1 × Front Panel Header (9-pin) 1 × Power Restore Header (Tied Pins 2-3: Automatic Power On by default)
- Ethernet
- 4 × Intel® I226-V 2.5G Ethernet (With LED indicators)
- Wireless
- Wi-Fi 6 (802.11ax) & LTE / 5G Cellular (Optional via M.2 Expansion)
- Kensington Lock
- Yes (1 × 7*3mm)
- TPM
- Supports Onboard TPM 2.0
- Battery
- RTC 2032 3.3V
- Environmental
- Operating Temp: -10°C to 50°C (-20°C to 70°C Optional) Operating Humidity: 0% to 95% RH, non-condensing Storage Temp: -30°C to 70°C
- Adapter
- Input: 12V DC, 4A, 48W, threaded lock connector 1.5m cable length
- Certification
- CE / FCC / CB / CEC / RoHS
- Operating System
- Windows 11 Pro (Pre-installed) Supports XCP-ng 8.3, Ubuntu Desktop 24.04.3 LTS, Ubuntu Server 24.04.3 LTS
- Accessory
- Desktop / VESA mounting bracket
